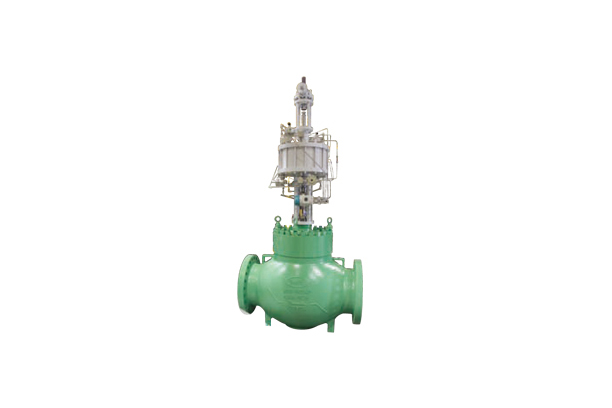

STANDARD MATERIALS
| PART NAMES | MATERIALS |
|---|---|
| BODY | NOTE 1) |
| BONNET | NOTE 1) |
| SEAT | 316SS or 410SS 2) |
| PLUG | 316SS or 410SS 2) |
| CAGE | 316SS or 410SS |
| STEM | 316SS + H.cr |
| GASKET | SPRIAL WOUNDED GRAPHITE |
| GLANDPACKING | PTFE or GRAPHITE |
Note
1) All the Stainless Steel Available
ASTM A216-WCB, ASTM A217-WC6 / WC9 / C12A
ASTM 352-LCB / LC1 / LC2 / LC3
2) 316SS + Stellite Welding(#6) or 410SS + Q.T
SPECIFICATIONS
1) Valve Size : 1" ~ 44" (Globe or Angle)
2) Applicable Rating : ASTM 150#~2500#
3) Temperature : -196℃ to 570℃
4) Designed to ANSI B16.34 and ASME VIII standards
5) Allowable Seat Leakage : IV, V, VI, Zero
6)Control Characteristics
EQ% , Linear , Modified , Q-Opening
7) Main features
- Large capacity
- Fast opening (0.5 - 1 second)
- Operating range 50:1 ~ 100:1
- Outlet valve gas speed Limitation (0.3 Mach)
- Sound typically 85dB(A) or less
- Quick change type
