GATE VALVES

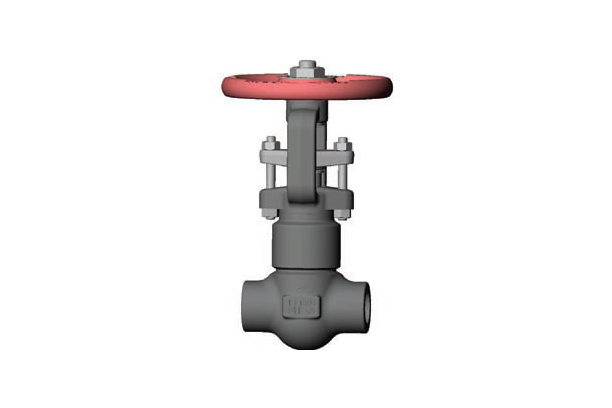

Model FORGED STEEL GATE VALVES - OS & Y, WB TYPE (21)
Series Forged Valves
Product Description


STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 1)
SEATASTM A276-410-H.F
WEDGEASTM A217-CA15
STEMASTM A276-410
GLAND PACKINGGRAPHITE
GLANDASTM A276-410

NOTE

1) ASTM A105, A182-F304(L) / F316(L) / F22 / F5/ F9 / F317 / F347 / F321


SPECIFICATIONS

1) Valve Size : 1/2" ~ 2"
2) Applicable Rating : ASME 900# ~ 4500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
     Designed by ASME B16.11 / 16.25 / 16.34 / 16.5
5) Constructions
     - End Connection : Socket-Welded or Flanged Type
     - WB (=Welded Bonnet) Type
     - Full Bore / Reduce Bore
     - Rising Stem / Non Rising Hand wheel
     - Manual or Motor Operated
       (Pneumatic, Electric, or Hydraulic)
