GLOBE VALVES

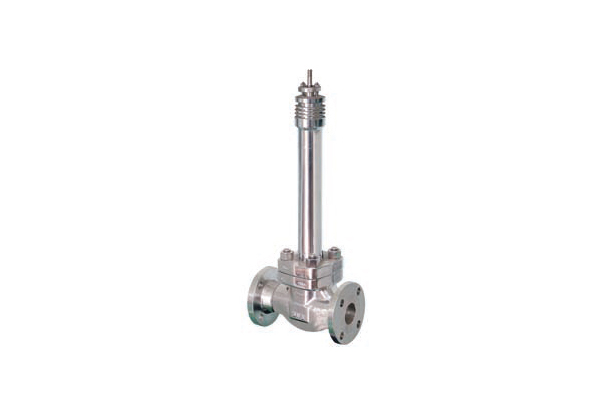

Model GLOBE VALVE. SERISE, SS-1150 (FOR CRYOGENIC SERVICE, FORGED)
Series Control
Product Description



STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 1)
SEAT316SS+Stellite welding
PLUG316SS+Stellite welding
CAGE316SS+Ni
STEM316SS+H.cr
GASKETSPRIAL WOUNDED GRAPHITE
GLANDPACKINGPTFE or GRAPHITE

NOTE

1)A182-F304 / F316 / F304L / F316L / MODEL ETC


SPECIFICATIONS

1) Valve Size : 1" ~ 10"
2) Applicable Rating : ASME 150# ~ 4500#
3) Temperature : Up to -196℃
4) Code & Standard : API, BS, ASME, ASTM, KGSC
     Designed by ASME B16.10 / 16.25 / 16.34 / 16.5,
     API 598 & ISA Standard & BS 6364
5) Allowable Seat Leakage : IV, V, VI, Zero
6)Control Characteristics
    EQ% , Linear , Modified , Q-Opening
7)Additional Equipments
    Pneumatic & MOV Actuator
    Positioner , Air set , Solenoid V/V ETC.
