GATE VALVES

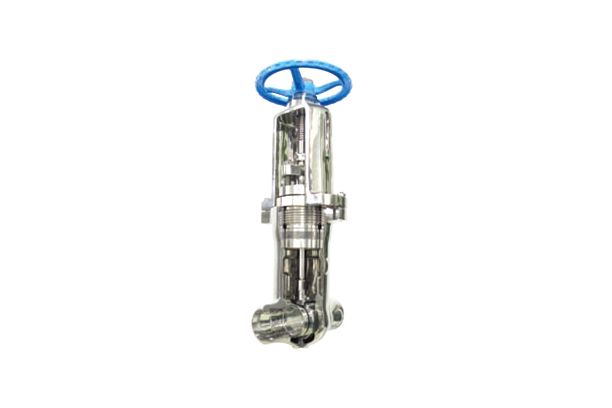

Model PARALLEL SIDE GATE VALVES-OS & Y, PSB TYPE (CV-PSB)
Series Casting Valves
Product Description

STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 2)
SEATASTM A276-316(H.F) / A105(H.F) 3)
DISCASTM A276-304(H.F) / A576-1020(H.F) 3)
STEMASTM A276-410
GASKETGRAPHITE
HABDWHEELASTM A197
GLAND PACKINGGRAAPHITE
GLANDASTM A276-410

note

1) All the Stainless Steel Available
2) HIGH TEMP. : ASTM A216-WCB, ASTM A217-WC1 / WC6 / WC9
3) Hard Facing : Stellite, Ni-Cr Coating, Nickel Alloy Overlay


SPECIFICATIONS

1) Valve Size : 2" ~ 16"
2) Applicable Rating : ASME 600# ~ 1500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM, KGSC
     Designed by ASME B16.34 / 16.10 / 16.25
5) Constructions
     - End Connection : Flanged Type
     - PSB (=Pressure Seal Bonnet) Type
     - Full Bore
     - Manual or Motor Operated
       (Pneumatic, Electric, or Hydraulic)
