GLOBE VALVES

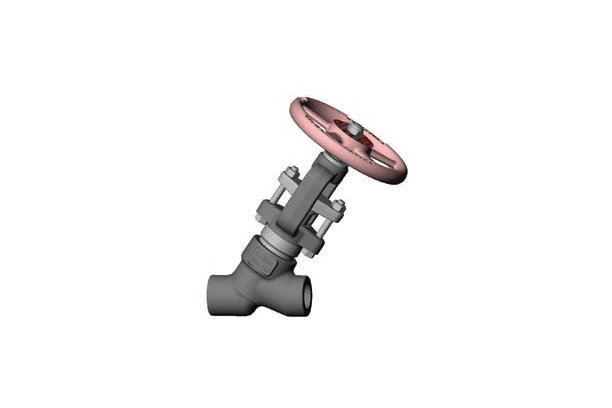

Model FORGED STEEL Y-GLOBE VALVES - OS & Y, WB TYPE (29)
Series Forged Valves
Product Description



STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 1)
SEATASTM A105-H.F
DISCASTM A276-410
STEMASTM A276-410
GASKETGRAPHITE
GLAND PACKINGGRAPHITE
GLAND

ASTM A276-410


NOTE

1) ASTM A105, A182-F304(L) / F316(L) / F22 / F5 / F9 / F317 / F347 / F321


SPECIFICATIONS

1) Valve Size : 1/2" ~ 2"
2) Applicable Rating : ASME 900# ~ 4500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
     Designed by ASME B16.11 / 16.25 / 16.34 / 16.5
5) Constructions
    - End Connection : Socket-Welded or Flanged Type
    - WB (=Welded Bonnet) Type
    - Full Bore / Reduce Bore
    - Rising Stem / Rising Hand wheel
    - Manual or Motor Operated
      (Pneumatic, Electric, or Hydraulic)
