GATE VALVES

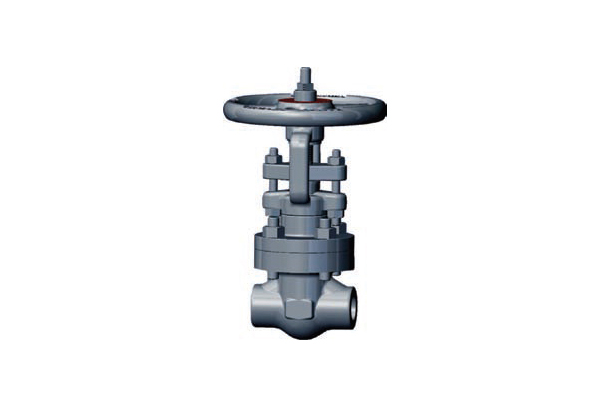

Model FORGED STEEL GATE VALVES - OS & Y, BB TYPE (A1)
Series Forged Valves
Product Description



STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 1)
SEATASTM A276-410-H.F
WEDGEASTM A217-CA15
STEMASTM A479-410
GASKETGRAPHITE
HANDWHEEL
ASTM A47
GLAND PACKINGGRAPHITE
GLANDASTM A276-410

NOTE

1) ASTM A105, A182-F304(L) / F316(L) / F22 / F5 / F9 / F317 / F347 / F321


SPECIFICATIONS

1) Valve Size : 1/2" ~ 2"
2) Applicable Rating : ASME 150# ~ 1500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
     Designed by ASME B16.11 / 16.34 / 16.5, API 600
5) Constructions
    - End Connection : Socket-Welded or Flanged Type
    -  OS & Y, BB (=Bolted Bonnet) Type
    - Full Bore
    - Rising Stem / Non Rising Hand wheel
    - Manual or Motor Operated
      (Pneumatic, Electric, or Hydraulic)
