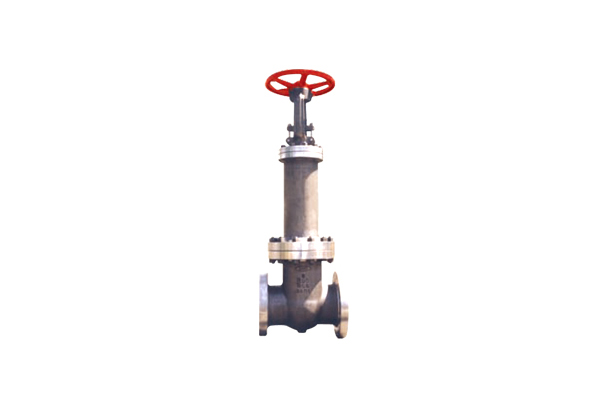

STANDARD MATERIALS
| PART NAMES | MATERIALS |
|---|---|
| BODY | NOTE 1) |
| BONNET | NOTE 1) |
| BELLOWS | ASTM A240-321 |
| SEAT | ASTM A276-410 / 304(L) / 316(L)-H.F |
| WEDGE | ASTM A216-WCB, A276-304(L)-316(L) |
| STEM | ASTM A216-410, A276-304(L)-316(L) |
| GASKET | GRAPHITE |
| HANDWHEEL | DUCTILE |
| GLAND PACKING | GRAPHITE |
| GLAND | ASTM A276-316 |
NOTE
1) ASTM A216-WCB, A351-CF3(M) / CF8(M)
SPECIFICATIONS
1) Valve Size : 2" ~ 24"
2) Applicable Rating : ASME 150# ~ 1500#
3) Temperature : Up to 500℃
4) Code & Standard : BS, ASME, ASTM, KGSC
Designed by ASME B16.11 / 16.34 / 16.5
5) Constructions
- Bellows-Sealed Construction
- End Connection : Butt-Welded or Flanged Type
- BB (=Bolted Bonnet) Type
- Full Bore / Reduce Bore
- Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)
