GLOBE VALVES

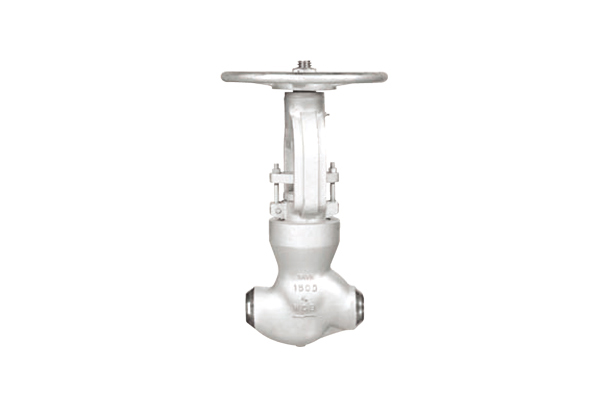

Model GLOBE VALVES-OS & Y, PSB TYPE (CD-PSB)
Series Casting Valves
Product Description


STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 1)
SEATASTM A105-(H.F)
DISCASTM A217-CA15
STEMASTM A276-410
GASKETGRAPHITE
HABDWHEELASTM A197
GLAND PACKINGGRAPHITE
GLAND

ASTM A276-410


NOTE

1) HIGH TEMP. : ASTM A216-WCB, ASTM A217-WC1 / WC6 / WC9,
    LOW TEMP. : ASTM A352-LCB / LC1 / LC2 / LC3


SPECIFICATIONS

1) Valve Size : 2" ~ 16"
2) Applicable Rating : ASME 600# ~ 2500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM, KGSC
     Designed by ASME B16.10 / 16.25 / 16.34 / 16.5,
     API 598 / 600
5) Constructions
    - End Connection : Butt-Welded Type
    - PSB (=Pressure Seal Bonnet) Type
    - Full Bore
    - Manual or Motor Operated
       (Pneumatic, Electric, or Hydraulic)
