BALL VALVES

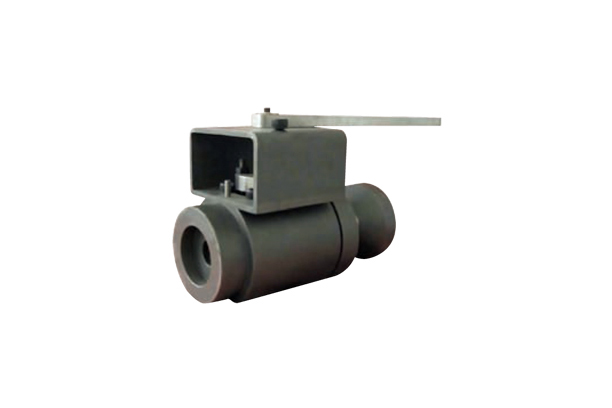

Model FORGED STEEL SIDE ENTRY BALL VALVES-FREE FLOATING METAL-SEATED BALL TYPE (FM)
Series Ball Valves
Product Description


STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 1)
SEATASTM A27-316-(H.F) 2)
BALLASTM A351-CF8 (M) (H.F) 2)
STEMASTM A564-360, AISI 1020 + ENP Coating
GASKETNOTE 3)
PACKINGGRAPHITE
BEARINGASTM A276-316
TRUNN ONASTM A564-360, AISI 1020+ENP Coating


NOTE

1) ASTM A105 (WITH TC), A182-F316 (WITH TC),A182-F22 (WITH TC)
    A216-WCB (WITH TC), A217-WC6 (WITH TC), or A217-WC9
     (WITH TC)
2) ASTM A105 / A216-WCB / A217-WC6 / A217-WC9 / A182-F22
     A182-F316 316SS / 410SS WITH TC


SPECIFICATIONS

1) Valve Size : 1/2 " ~ 4"
2) Applicable Rating : ASME 900# ~ 4500#
3) Temperature : Up to 230℃
4) Code & Standard : API, BS, ASME, ASTM,
     Designed by ASME B16.11 / 16.34, MSS-SP -72
5) Constructions
    - 2-Piece Body
    - End Connection :Socket-Welded Type
    - Floating Ball Type
    - Std. Multi-Coil Spring for Live Loading
    - Blow-out Proof Stem / Precise Metal Gasket
    - Integral Seat for Zero Leakage / Hard Coating on the Ball
    - Dual Stem Guiding for Reducing Torque
    - Reduce Bore / Full Bore
    - Bubble-tight Std.
    - Fire Safety Construction (API-607)
    - Manual Operating
