GLOBE VALVES

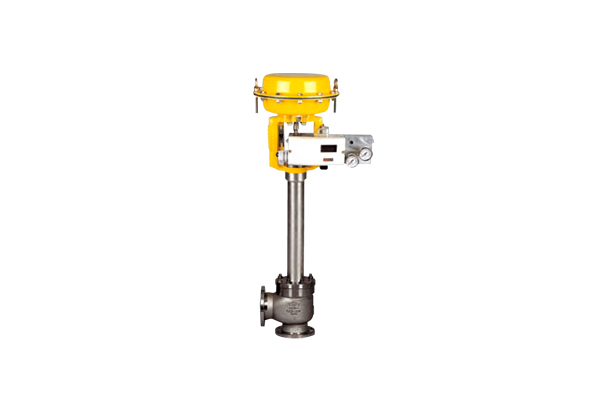

Model ANGLE GLOBE CONTROL VALVES - SERIES SS-2050
Series Casting Valves
Product Description


STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 1)
SEATStainless Steel
STEMASTM A276-304
GASKETSPIRAL WOUNDED GRAPHITE
BONNET BOLTStainless Steel
GLAND PACKINGGRAPHITE
GLANDASTM A276-316

NOTE

1) Forged Stainless Steel, ASTM A351-CF8(M), High Strength Aluminium


SPECIFICATIONS

1) Valve Size : 1/2" ~ 24"
2) Applicable Rating : ASME 150# ~ 2500#, KS 10K ~ 40K
3) Temperature : Down to -196℃
4) Code & Standard : BS, ASME, ASTM, KGSC
     Designed by BS6364, ASME B16.34, and ASME B16.11/16.5
5) Allowable Seat Leakage : ASME ClassⅠ~Ⅵ
6) Constructions
    - End Connection : Butt-Welded, or Flanged Type
    - Long Extended Bonnet
    - Actuator : Cylinder or Diaphragm Type
    - Quick Change Typed Trim
