GLOBE VALVES

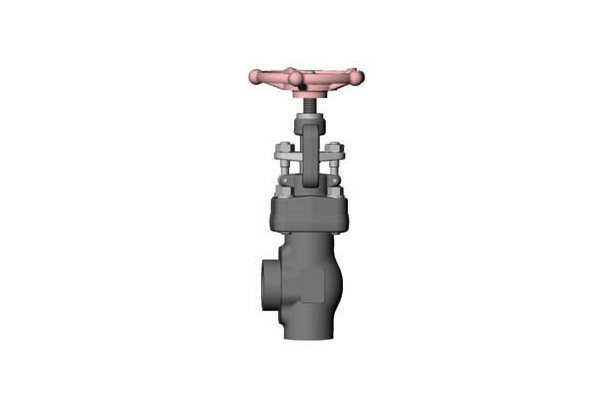

Model FORGED STEEL ANGLE GLOBE - OS & Y, BB TYPE (16)
Series Forged Valves
Product Description



STANDARD MATERIALS

PART NAMESMATERIALS
BODYNOTE 1)
BONNETNOTE 1)
SEATASTM A105-H.F
DISCASTM A276-410
STEMASTM A276-410
GASKETGRAPHITE
GLAND PACKINGGRAPHITE
GLAND304L SS

NOTE

1) ASTM A105, A182-F304(L) / F316(L) / F22 / F5 / F9 / F317/ F347 / F321


SPECIFICATIONS

1) Valve Size : 1/2" ~ 2"
2) Applicable Rating : ASME 150# ~ 900#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
     Designed by ASME B16.11 / 16.34, BS5352
5) Constructions
   - End Connection : Socket-Welded Type
   - BB (=Bolted Bonnet) Type
   - Full Bore / Reduce Bore
   - Rising Stem / Rising Hand wheel
   - Manual or Motor Operate
     (Pneumatic, Electric, or Hydraulic)
