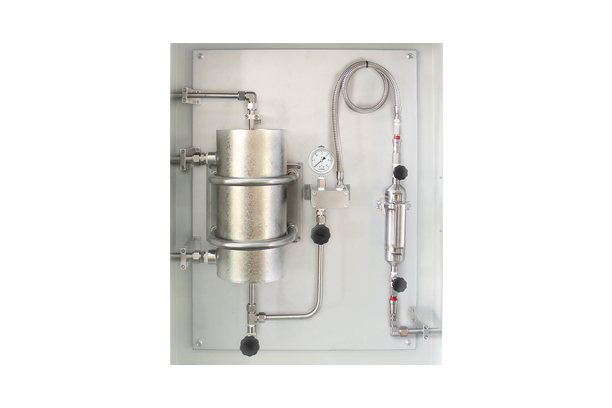

For cooling high temperature, high pressure liquid or gas samples suitable materials available for corrosive and extreme temperature service stainless coil is standard with rating 150 lbs to 2500lbs.
Sampling system, also known as sampler, it is an equipment used for representative sample collection from process, pipeline and storage tank.
Due to the growing complexity of the industrial processes, the need for products testing and analyzing increases continuously, and safety for sampling process is taken more and more consideration, simple primitive sampling system evolved into safe and reliable closed-loop sampling system.
Closed-loop sampling system is separated into bottle configuration and cylinder configuration according to the container, the difference of this two configurations is container form and sealing type : Bottle configuration sampling system is sealed with an automatically sealed septum; Cylinder configuration is sealed by the needle valves equipped at both ends of the cylinder.
Materials
| NO. | PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
|---|---|---|---|
| 1 | Shell | A312-TP304 | 316L S.S |
| 2 | Tube & Coil | A269-TP304 | A269-TP316, A269-TP316L, Duplex, Alloy |
| 3 | Fitting & Valve | 316 S.S | Duplex, Alloy |
| 4 | Flange, Sample inlet | A182-F304 | A182-F316, A182-F316L |
| 5 | Drain plug | Carbon steel | 304 S.S, 316 S.S |
| 6 | Flange, Cooling water inlet | A105 | A182-F304, A182-F316, A182-F316L |
| 7 | Flange, Cooling water outlet | A105 | A182-F304, A182-F316, A182-F316L |
| 8 | Cover | A36 | 304 S.S, 316 S.S |
