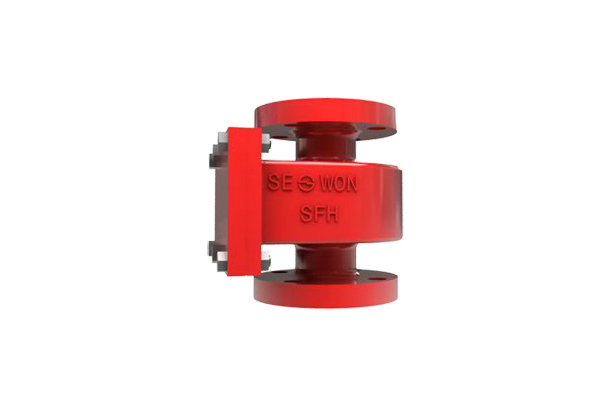

FLAME ARRESTER

Model SFH
Series Flame Arrester
Product Description

NOMINAL SIZE
- 1-1/2", 2", 3", 4", 6", 8", 10", and 12"\
- 14" through 20" sizes are available upon request.


CONNECTIONS
- ANSI/ASME B16.5 Class 150 Flange\
- KS/JIS 10K Flange


Protect process line or system from potential ignition source

Designed easy seperating Flame Element Housing and it is very convenient for maintenance.
Bi-directional Flame Arrester like Model SFG, vertical or horizontal installation is available.

▶ Consult our factory for special application.


Specifications

InstallationVertical, recommend Required drain plug for horizontal installation
TypeIn-line flame arrester
ClassificationDeflagration flame arrester, Bi-directional
Normal working pressureBelow 1.0 barg(standard speciafication)
Explosion gas groupIIA(standard), IIB/IIC(for special application)
▶ Other specifications are available. consult our factory


Materials

PART NAMEMATERIALS STANDARDMATERIALS OPTIONAL
BodyCarbon Steel, 304 S.S, 316 S.S,AluminumHastelloy, Alloy 20, Monel, Inconel
Flame Element304 S.S, 316 S.SHastelloy, Alloy 20, Monel, Inconel
Element Housing304 S.S, 316 S.SHastelloy, Alloy 20, Monel, Inconel
Stud Bolt and NutC.S, 304 S.S316 S.S
▶ Other special materials are available upon customer`s request. Hastelloy is the registered trademark of Haynes international,Inc.



Basic Ordering Information

1. Model and type
2. Fluid Handling
3. Operating Temperature & Pressure ranges
4. Size and Connection
5. Material
6. Distance from potential ignition source
