Name

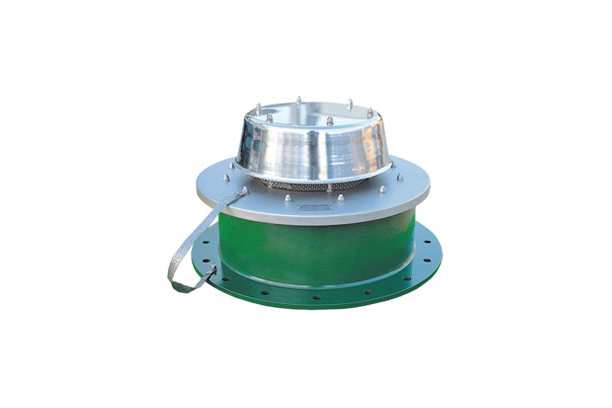

EMERGENCY VENT COVER

Model SEV
Series Emergency Vent Cover
Product Description

NOMINAL SIZE
- 16", 18", 20", and 24"
- Other sizes or specifications are available upon request.

CONNECTIONS
- API 650 Flange drilling(For 20" & 24" only)
- ASME 150Lbs Flange drilling
- KS/JIS 5K Flange drilling
- KS/JIS 10K Flange drilling


Hinged Type Emergency Manhole Cover Vent Enable exact Re-Seating by Hinge Mechanism The design also allows convenient access through the vent for tank inspection and maintenance

Incorporates a vacuum relief, and enables pressure and vacuum relief when emergency condition.
Designed to open the valve and enable to flow external air when excessive vacuum over setting value is generated in the storage tank.
Air-cushion pallet reduces the vapor leakage from storage tank

▶ Consult our factory for special application.


Specifications

InstallationVertical
TypeWeight loaded, conventional emergency pressure & vacuum relief vent
Set pressure / Set vacuumMaximum 700mmH²O


Materials

PART NAMEMATERIALS STANDARDMATERIALS OPTIONAL
BodyCarbon Steel, 304 S.S, 316 S.S,AluminumHastelloy, Alloy 20, FRP, PTFE, ETFE LINED
Pallet304 S.S, 316 S.SHastelloy, Alloy 20, FRP, PTFE, ETFE LINED
WeightA36304 S.S
Diaphragm/O-ringTeflon(Diaphragm seal)NBR, Viton(O-ring seal)
Weather Hood304 S.S, Aluminum316 S.S

▶ Other special materials are available upon customer`s request.


Basic Ordering Information

1. Model and type
2. Tank Diameter and Height
3. Tank Type
4. Design Pressure of the tank
5. Fluid Handling
6. Size and Connection
7. Material
