NOMINAL SIZE
- 1-1/2", 2", 2-1/2", 3", and 4"
- Other sizes are available upon request.
CONNECTIONS
- Bend with stainless steel hose clamp.

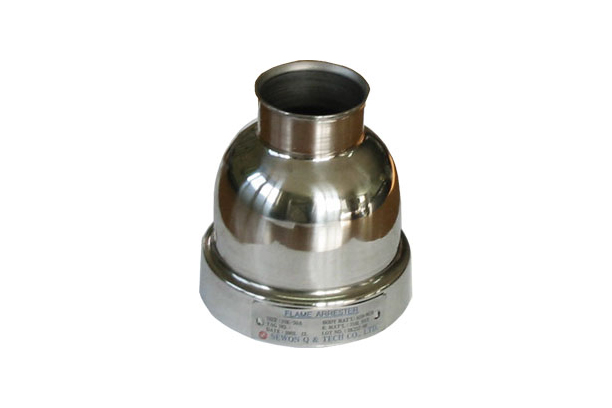

Protect flashback at end-of-line of small pipe
Simply installed by inserting at end-of-line and almost no need any maintenance.
Higher performance compare to wire screen flame arrester Connect directly with stainless steel hose clamp Base specification of material is stainless steel(304S.S) of high corrosion resistance Designed to minimize pressure drop Easy inspection and maintenance
▶ Consult our factory for special application.
Specifications
| Installation | End-of-line |
|---|---|
| Classification | Deflagration, directional |
| Explosion gas group | IIA |
Materials
| PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
|---|---|---|
| Body | 304 S.S | 316 S.S |
| Flame Element | 304 S.S, 316 S.S | Hastelloy, Alloy 20, Monel, Inconel |
▶ Other special materials are available upon customer`s request. Hastelloy is the registered trademark of Haynes international,Inc.
Basic Ordering Information
1. Model and type
2. Fluid Handling
3. Operating Temperature & Pressure ranges
4. Size and Connection
5. Material
