NOMINAL SIZE
- 3/4", 1", 1-1/2", 2", 3", 4", 6", 8", 10", and 12"
- Other sizes are available upon request.
- Available EN 12874:2001 Certified Model.
CONNECTIONS
- ANSI/ASME B16.5 Class 150 Flange
- KS/JIS 10K Flange

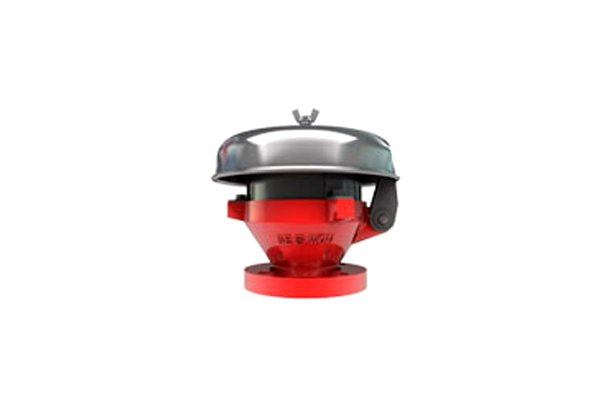

Protect storage tank or system from potential ignition source Installed at end-of-line or top nozzle of storage tank.
Self-opening Weather hood Mechanism when burning Condition occurred Drilling conforming to ANSI/ASME B16.5 for class 150 Flanges or KS/JIS 10K Flanges Especially, in case of below 6" size model, designed more stable by self-opening Weather hood Mechanism when endurance burning for more 1~2 minutes in order to prevent overheating flame element.
Flame arrester is very important equipment which can protect storage tank or system from potential ignition source and, especially, flame arrester should be installed for storing flammable substance of flash point below 65 degree
▶ Consult our factory for special application.
Specifications
| Installation | Vertical |
|---|---|
| Type | End-of-line flame arrester |
| Classification | Deflagration flame arrester |
| Normal working pressure | Below 1.0 barg(standard specification) |
| Explosion gas group | IIA(standard), IIB/IIC(for special application) |
Materials
| PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
|---|---|---|
| Body | Carbon Steel, 304 S.S, 316 S.S,Aluminum | Hastelloy, Alloy 20, Monel, Inconel |
| Flame Element | 304 S.S, 316 S.S | Hastelloy, Alloy 20, Monel, Inconel |
| Element Housing | 304 S.S, 316 S.S | Hastelloy, Alloy 20, Monel, Inconel |
| Whether Hood | Aluminum, 304 S.S, 316S.S | 316L S.S |
| Bolt and Nut | C.S, 304 S.S | 316 S.S |
Basic Ordering Information
1. Model and type
2. Fluid Handling
3. Operating Temperature & Pressure ranges
4. Size and Connection
5. Material
