NOMINAL SIZE
- 2", 3", 4", 6", 8" 10" and 12"
CONNECTIONS
- ASME B16.5 Class 150 Flange
- KS/JIS 10K Flange
Protect process line or system from potential ignition source Detonation Flame Arrester

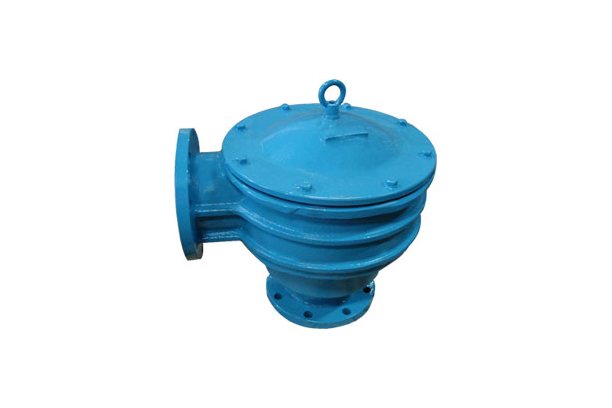

Connection: 90 degrees bend Available in size 2” to 12”
Drilling conforming to ANSI/ASME B16.5 for class 150 flanges, or KS/JIS 10K flanges Used when the inlet side is formed at 90 degree angle.
Specially designed to effectively eliminate the high pressure and shock waves generated during detonation from the inside.
▶ Consult our factory for special application.
Specifications
| Installation | Vertical |
|---|---|
| Type | In-line flame arrester |
| Classification | Detonation flame arrester, Bi-directional |
| Normal working pressure | Below 1.0 barg(standard specification) |
| Explosion gas group | IIA(standard), IIB/IIC(for special application) |
▶ Other specifications are available. consult our factory
Materials
| PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
|---|---|---|
| Body | Carbon Steel, 304 S.S, 316 S.S,Aluminum | Hastelloy, Alloy 20, Monel, Inconel |
| Flame Element | 304 S.S, 316 S.S | Hastelloy, Alloy 20, Monel, Inconel |
| Element Housing | 304 S.S, 316 S.S | Hastelloy, Alloy 20, Monel, Inconel |
| Stud Bolt and Nut | C.S, 304 S.S | 316 S.S |
▶ Other special materials are available upon customer`s request. Hastelloy is the registered trademark of Haynes international,Inc.
Basic Ordering Information
1. Model and type
2. Fluid Handling
3. Operating Temperature & Pressure ranges
4. Size and Connection
5. Material
