NOMINAL SIZE
- 16", 18", 20", and 24"
- Other sizes or specifications are available upon request.
CONNECTIONS
- API 650 Flange drilling(For 20" & 24" only)
- ASME 150Lbs Flange drilling
- KS/JIS 5K Flange drilling
- KS/JIS 10K Flange drilling

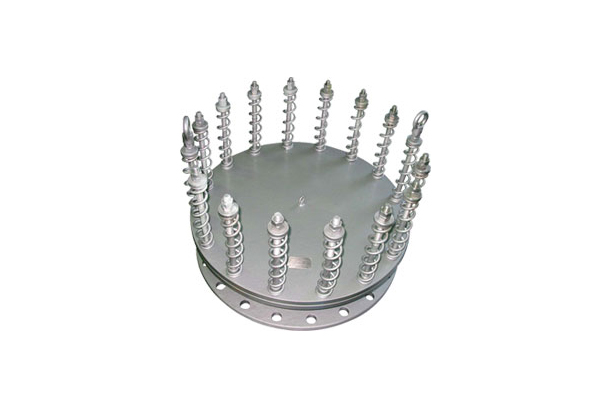

Emergency relief equipment used when set pressure is over 700mmH2O.
Designed to adjust set pressure by spring tension. Reseats when the over-pressure has been dissipated.
Drilling conforming to API 650, ASME B 16.5 for class 150 flanges, or KS/JIS 5K/10K flanges Basic material of spring is 304SS of high corrosion resistance so set pressure change is small even in long-term use.
▶ Consult our factory for special application.
Specifications
Installation | Vertical |
---|---|
Type | Spring loaded |
Set pressure | 1 PSI to 15 PSI |
Materials
PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
---|---|---|
Body | Carbon Steel, 304 S.S, 316 S.S,Aluminum | Hastelloy, Alloy 20, FRP, PTFE, ETFE LINED |
Pallet | 304 S.S, 316 S.S | Hastelloy, Alloy 20, FRP, PTFE, ETFE LINED |
O-ring | Viton | NBR, HNBR |
Spring | 304 S.S | 316 S.S |
▶ Other special materials are available upon customer`s request.
Basic Ordering Information
1. Model and type
2. Tank Diameter and Height
3. Tank Type
4. Design Pressure of the tank
5. Fluid Handling
6. Size and Connection
7. Material
