NOMINAL SIZE
- 1-1/2", 2", 3", 4", 6", 8", 10", and 12"
CONNECTIONS
- ANSI/ASME B16.5 Class 150 Flange
- KS/JIS 10K Flange

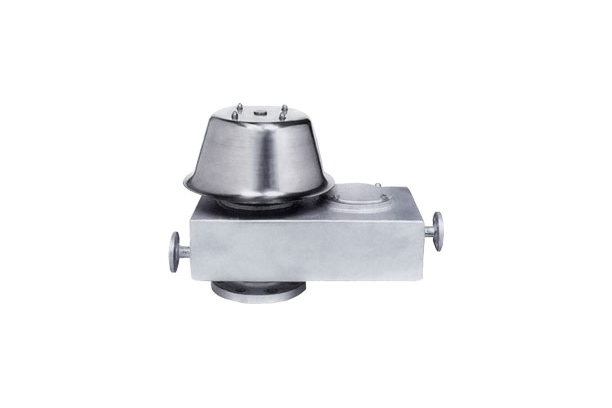

Installed the steam jacket as standard equipment, and provides a means of transferring heat from steam to the vent Used on tanks containing liquids whose vapors tend to crystallize at ambient temperatures
304 stainless steel, and weather hood 304 S.S jacket are standard air-cushioned pallet assures minimal internal vapor leakage Guided pressure and vacuum pallets assure smooth lift and closure, and suitable materials available for corrosive and extreme temperature service Jacket connection are ANSI/ASME B 16.5 for Class 150 Flanges.
Hydrostatic testing can be done in accordance with the customer's request. Threaded connections are also available.
Specifications
| Service | Pressure and Vacuum Relief, End-of-line |
|---|---|
| Set pressure & set vacuum, min/max | 22mmH²O(0.5oz/sq.in) / 700mmH²O(1psi) |
| Temperature range(standard) | -45°C~120°C(-1130℉~+248℉) |
Materials
| PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
|---|---|---|
| Body & Cover | Carbon Steel, 304 S.S, 316 S.S, Aluminum | Hastelloy, Alloy 20, FRP, PTFE, ETFE LINED |
| Seat | 304 S.S, 316 S.S, Aluminum | Hastelloy, Alloy 20, FRP, PTFE, ETFE LINED |
| Pallet | 304 S.S, 316 S.S | Hastelloy, Alloy 20, FRP, PTFE, ETFE LINED |
| Pallet Guide | 304 S.S, 316 S.S | 316 S.S |
| Seating Diaphragm | FEP TEFLON | Metal to metal |
| Weather Hood | 304 S.S, Aluminum | 316 S.S |
▶ Other special materials and special specifications are available upon customer`s request.
