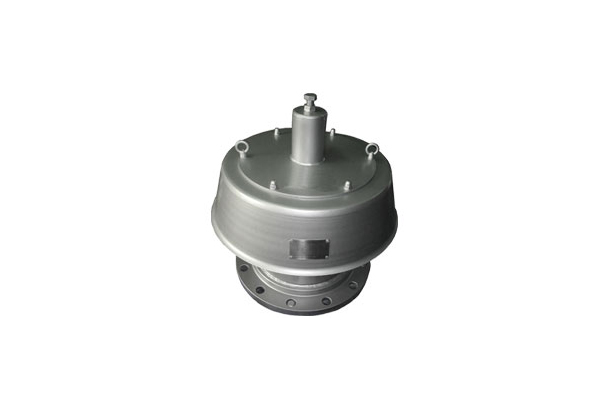

PRESSURE RELIEF VALVE

Model SBG
Series P/V Relief Valve
Product Description

NOMINAL SIZE
- 1-1/2", 2", 3", 4", 6", 8", 10", and 12"

CONNECTIONS
- ANSI/ASME B16.5 Class 150 Flange
- KS/JIS 10K Flange


Pressure Relief Valve Installed in a storage tank or system where there is no possibility of generating a vacuum or a Vacuum Relief device is installed separately and only pressure relief function is required.

Drilling conforming to ANSI/ASME B16.5 for Class 150 Flanges, or KS/JIS 10K Flanges Designed that the pallet can be seated correctly because of Pallet Guide.
Designed protect storage tank from internal over-pressure, and standard air-cushioned pallet assures minimal internal vapor leakage Suitable materials available for corrosive Chemical, and supply various size valve.
NBR(Buna-N), VITON and other seating materials are available when required

▶ Consult our factory for special application.


Specifications

ServicePressure and Vacuum Relief, End-of-line
Set pressure & set vacuum, min/max.
Weight loaded type.
Spring loaded type
22mmH2O(0.5oz/sq.in) / 700mmH2O(1psi)
700mmH2O(1psi) / 1.05kg/㎠(15psi)
Temperature range(standard)-45℃~120℃(-113℉~+248℉)

Materials

PART NAMEMATERIALS STANDARDMATERIALS OPTIONAL
Body & CoverCarbon Steel, 304 S.S, 316 S.S, AluminumHastelloy, Alloy 20, FRP, PTFE, ETFE LINED
Seat304 S.S, 316 S.S, AluminumHastelloy, Alloy 20, FRP, PTFE, ETFE LINED
Pallet304 S.S, 316 S.SHastelloy, Alloy 20, FRP, PTFE, ETFE LINED
Pallet Guide304 S.S, 316 S.S316 S.S, PTFE COATING
Seating DiaphragmFEP TEFLON (Weight loaded type)
VITON O-ring (spring loaded type)
Metal to metal
Weather Hood304 S.S, Aluminum316 S.S

▶ Other special materials and special specifications are available upon customer`s request.
