For cooling high temperature, high pressure liquid or gas samples suitable materials available for corrosive and extreme temperature service stainless coil is standard with rating 150 lbs to 2500lbs.

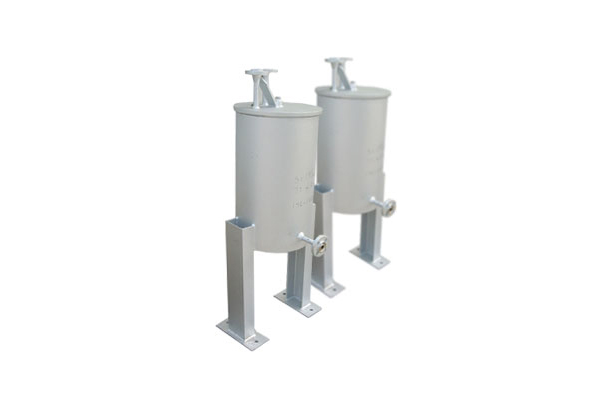

Sampling cooler which cools the temperature so that the samplecan be taken safely.
The inside is made of coil structure to cool the sample's temperature quickly and safely.
Materials
NO. | PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
---|---|---|---|
1 | Shell | A53-GR, B(Carbon steel), A36 | 304 S.S, 316 S.S |
2 | Coil | A312-TP304 | A312-TP316, A312-TP316L |
3 | Flange, Sample outlet | A182-F304 | A182-F316, A182-F316L |
4 | Flange, Sample inlet | A182-F304 | A182-F316, A182-F316L |
5 | Drain plug | Carbon steel | 304 S.S, 316 S.S, 316L S.S, Duplex, Alloy |
6 | Flange, Cooling water inlet | A105 | A182-F304, A182-F316, A182-F316L, Duplex, Alloy |
7 | Flange, Cooling water outlet | A105 | A182-F304, A182-F316, A182-F316L, Duplex, Alloy |
8 | Cover | 304 S.S | 316 S.S, 316L S.S |
