NOMINAL SIZE
- 3/4", 1", 1-1/2", 2", 3", 4", 6", 8", 10", and 12"
- Other sizes are available upon request.
CONNECTIONS
- ANSI/ASME B16.5 Class 150 Flange
- KS/JIS 10K Flange

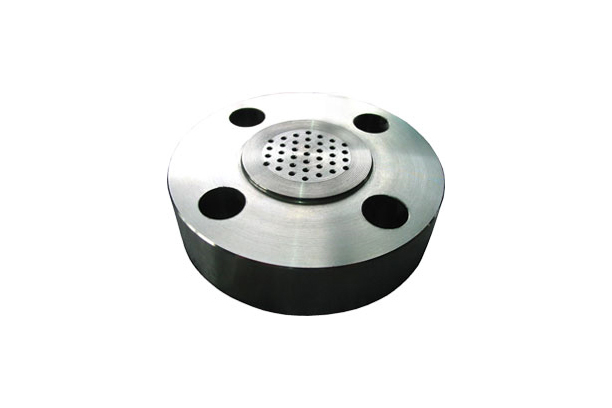

Sewon SFL perforated plate flame arrester is used primarily for deflagration arresters. The perforated plate is stainless steel as standard material. The flame arresters are available with a wide range of hole diameters and plate thicknesses.
Protect storage tank or system from potential ignition source Easy installation and simple structure Available in size 3/4” to 12”
Drilling conforming to ANSI/ASME B16.5 for class 150 flanges, or KS/JIS 10K flanges. Other standards are available on customer's request.
Specifications
| Installation | Vertical / Horizontal |
|---|---|
| Type | In-line flame arrester, perforated plate flame arrester |
| Classification | Deflagration flame arrester |
Materials
| PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
|---|---|---|
| Body | 304 S.S | 304 S.S, 316 S.S |
| Bolt and Nut(Optional) | A193-B7 / A194-2H | 304 S.S, 316 S.S |
| Gasket(Optional) | PTFE Teflon | Non-Asbestos, EPDM |
▶ Other special materials and special designs are available upon request.
