Name

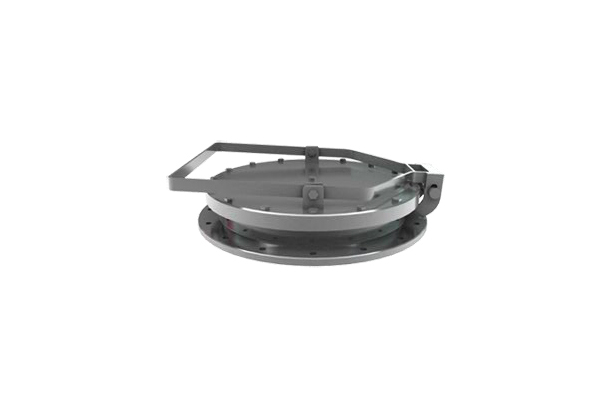

EMERGENCY VENT COVER

Model SEB
Series Emergency Vent Cover
Product Description

NOMINAL SIZE
- 16", 18", 20", and 24"
- Other sizes or specifications are available upon request.

CONNECTIONS
- API 650 Flange drilling(For 20" & 24" only)
- ASME 150Lbs Flange drilling
- KS/JIS 5K Flange drilling
- KS/JIS 10K Flange drilling


Hinged Type Emergency Manhole Cover Vent Enable exact Re-Seating by Hinge Mechanism The design also allows convenient access through the vent for tank inspection and maintenance

Drilling conforming to API 650, ASME B16.5 for class 150 flanges, or KS/JIS 5K/10K flanges The basic material of pallet is 304SS, strong for corrosion, can reduce maintenance by high durability. Applied Air Cushioned Pallet as standard

▶ Consult our factory for special application.


Specifications

InstallationVertical
TypeWeight loaded, conventional vent with hinge mechanism
Set pressureMaximum 700mmH²O



Materials

PART NAMEMATERIALS STANDARDMATERIALS OPTIONAL
BodyCarbon Steel, 304 S.S, 316 S.S,AluminumHastelloy, Alloy 20, FRP, PTFE, ETFE LINED
Pallet304 S.S, 316 S.SHastelloy, Alloy 20, FRP, PTFE, ETFE LINED
WeightA36304 S.S
Diaphragm/O-ringTeflon(Diaphragm seal)NBR, Viton(O-ring seal)

▶ Other special materials are available upon customer`s request.


Basic Ordering Information

1. Model and type
2. Tank Diameter and Height
3. Tank Type
4. Design Pressure of the tank
5. Fluid Handling
6. Size and Connection
7. Material
