NOMINAL SIZE
- 2", 3", 4", 6", 8" 10" and 12"
CONNECTIONS
- ASME B16.5 Class 150 Flange
- KS/JIS 10K Flange

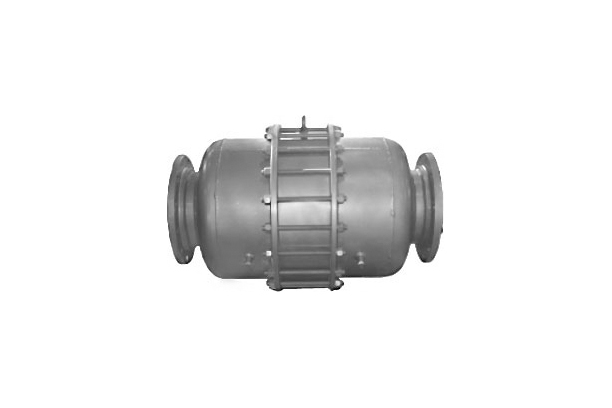

Protect process line or system from potential ignition source In-line Detonation Type Available in size 2” to 24”
Drilling conforming to ANSI/ASME B16.5 for class 150 flanges, or KS/JIS 10K flanges Specially designed to effectively eliminate the high pressure and shock waves generated during detonation from the inside.
Bi-directional Flame Arrester like Model SFG, vertical or horizontal installation is available.
▶ Consult our factory for special application.
Specifications
| Installation | Vertical, recommend Required drain plug for horizontal installation |
|---|---|
| Type | In-line flame arrester |
| Classification | Detonation flame arrester, Bi-directional |
| Special design to detonation | KR Cert |
▶ Other specifications are available. consult our factory
Materials
| PART NAME | MATERIALS STANDARD | MATERIALS OPTIONAL |
|---|---|---|
| Body | Carbon Steel, 304 S.S, 316 S.S | Hastelloy, Alloy 20, Monel, Inconel |
| Flame Element | 304 S.S, 316 S.S | Hastelloy, Alloy 20, Monel, Inconel |
| Element Housing | 304 S.S, 316 S.S | Hastelloy, Alloy 20, Monel, Inconel |
| Stud Bolt and Nut | C.S, 304 S.S | 316 S.S |
▶ Other special materials are available upon customer`s request. Hastelloy is the registered trademark of Haynes international,Inc.
Basic Ordering Information
1. Model and type
2. Fluid Handling
3. Operating Temperature & Pressure ranges
4. Size and Connection
5. Material
