NOMINAL SIZE
- 4", 6", and 8"
CONNECTIONS
- ASME B16.5 Class 150 Flange
- KS/JIS 10K Flange

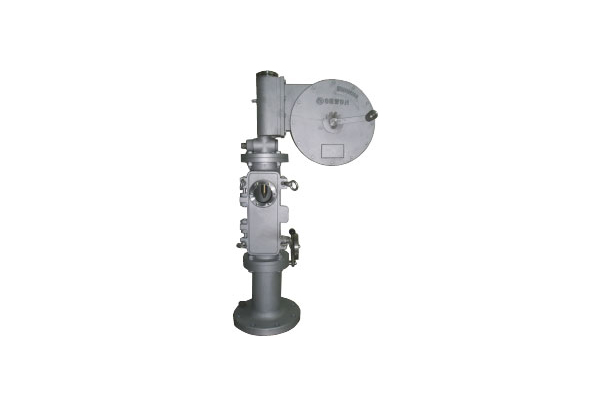

The Sewon SGDD Slot Dipping & Sampling Device is designed to take a sample from the storage tank containing volatile liquid, and to protect operator minimizing exposure from vapor or gas. It is operated mechanically, and no need any external power supply.
The device ensures leak tight, if correctly installed and used, when normal operating condition, except sampling. Every precaution must be taken to obtain samples, and particular care should be taken in handling dangerous materials to prevent serious injury.
Specifications
| Body materials | Aluminum casting orstainless steel |
|---|---|
| Connection | ANSI Class 150 or KS/JIS 10K |
| Inlet size | 4", 6", and 8" |
| Scale length | 30m, 50m, or, 100m |
| Capacities of sampling bottle | 300cc / 600cc |
| O-ring material | Viton, NBR, or other materials are available on costomer`s request. Consult our factory for special application or special design. |
Basic Ordering Information
1. Fluid Handling
2. Operating Temperature & Pressure ranges
3. Size and Connection
4. Material
