| Name |

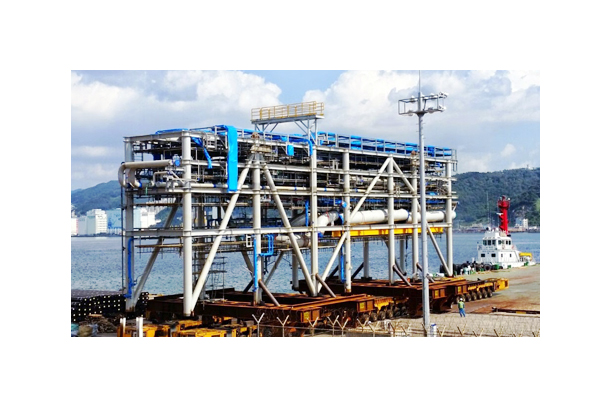

PIPE RACK |
| Series | ON/OFFSHORE (HEAVY STRUCTURE MODULE) |
Project : PETRONAS FLNG Project
Site : Kanowit Gas Field
Shipyard : DSME
Engineering : DSME
End-user : Petronas
Delivery : 4th Quarter of 2014
Size : 21M X 7M X 21M X 9sets
Weight : Total 1,470 Ton
Scope : Detail/Shop/Field Fabrication Drawings
Procurement
Fabrication of piping, structural work and unit assembly
Final Vendor Documents
Main Material : Structure : EH36, DH36, S355G11+M
Piping : SS316L, CS
