| Name |

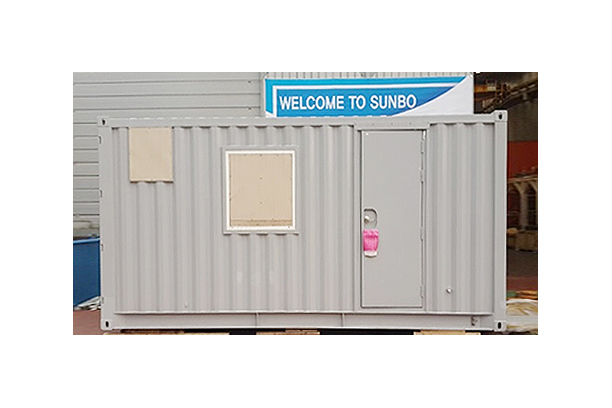

DO PURIFIER |
| Series | ON/OFFSHORE (UTILTY PACKAGE) |
Project : Angola Mini Power StationSite : Angola
Client : GEA / Hyosung
End-user : -
Delivery : Apr. 2014
Size : 2.44m(W)x6m(L)x2.59m(H) x 1 sets
Scope of Work : Detail/Shop/Field Fabrication Drawings
Procurement
Fabrication of piping, structural work and UNIT assembly
Final Vendor Documents
