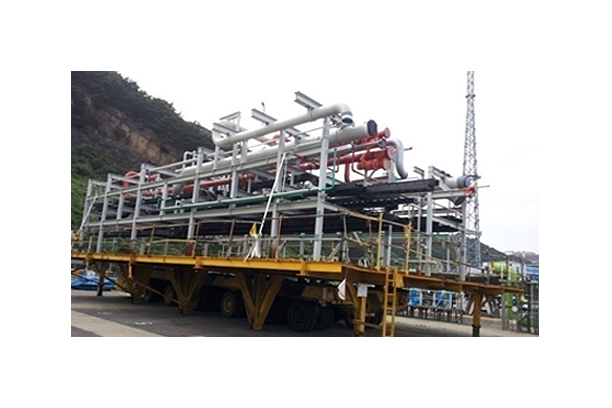

Project : SOUTH NEMBA FIXED PLATFORM Project
Site : Angola
Client : DSME
End-user : CHEVRON
Delivery : OCT. 2012
Size : 3m(W)x20m(L)x4m(H) x 11sets
Size : 200 Ton
Scope: Fabrication of piping
structural work
SUNBO
Process Package for Gas, BWMS, Engine room package, group unit and equipment, Utility package and heavy structure module
| Name |
PIPE RACK |
| Series | ON/OFFSHORE (HEAVY STRUCTURE MODULE) |
