| Name |

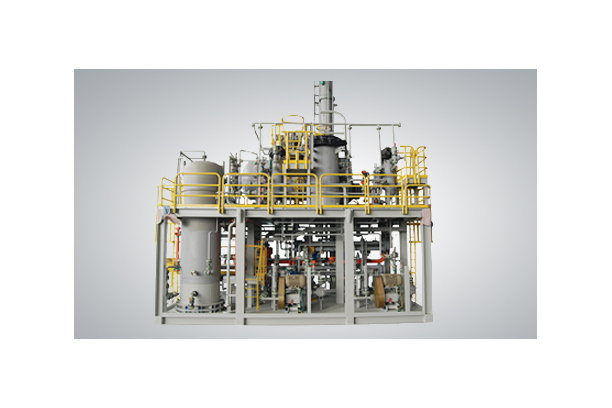

MEG REGENERATION SKID |
| Series | ON/OFFSHORE (PROCESS PKG) |
Project : Takula Platform Project
Site : Angola
Client : Natco Japan(Cameron)
EPCI : Samsung Heavy Industries Co., Ltd
End-user : Chevron
Delivery : August. 2007
Size : 4.5m(W)x8.5m(L)x4m(H)
Weight : 100 Ton
Scope of Work : Shop/Field Fabrication Drawings
Procurement of piping and structural material
Fabrication of piping, structural work and SKID assembly with E&I Interconnection
Final Vendor Documents
