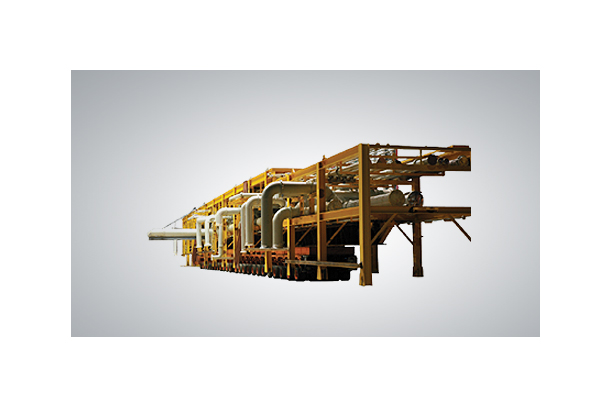

PIPE PROCESS MODULE |
| Series | ON/OFFSHORE (HEAVY STRUCTURE MODULE) |
Project : Dalia FPSO Project
Site : Angola
Client : Samsung Heavy Industries (SHI)
EPCI : Samsung Heavy Industries (SHI)
End-user : Total
Delivery : August. 2004
Size : 6m(W)x60m(L)x8m(H) x 4 sets
Weight : 900 Ton
Scope : Shop/Field Fabrication Drawings
Fabrication of piping, structural work and skid assembly with E&I Interconnection
Final Vendor Documents
