| Name |

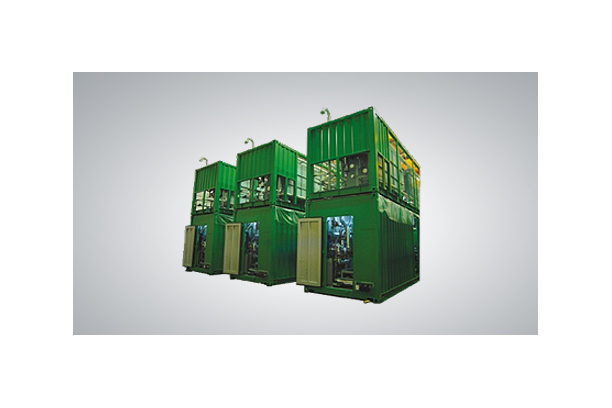

H.F.O TREATMENT UNIT |
| Series | ON/OFFSHORE (UTILTY PACKAGE) |
Project : 1700MW Packaged Power Station
Site : Cuba
Client : HHI Engine & Machinery Division
Engineering : Petronas
End-user : Energoimport
Delivery : Dec. 2007
Size : 2.438m(W)x12.192m(L)x3.4m(H) x 4 sets
Scope : Detail/Shop/Field Fabrication Drawings
Procurement
Fabrication of piping, structural work and UNIT assembly
Final Vendor Documents
