| Name |

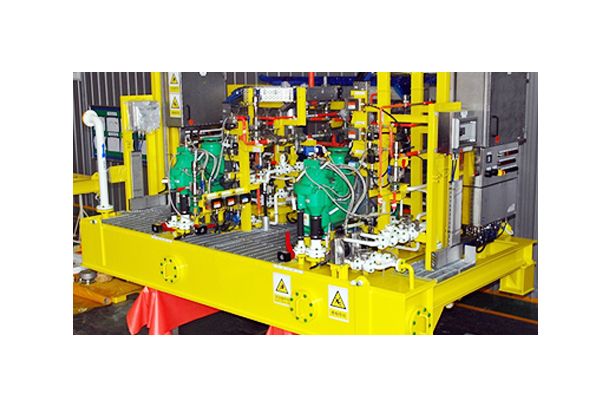

DIESEL CENTRIFUGE PURIFIER |
| Series | ON/OFFSHORE (UTILTY PACKAGE) |
Project : SK 316
Site : Malaysia
Client : GEA Westfalia
End-user : TMJV
Delivery : Nov. 2014
Size : 2.44m(W)x6m(L)x2.59m(H) x 1 sets
Scope of Work : Detail/Shop/Field Fabrication Drawings
Procurement
Fabrication of piping, structural
work and UNIT assembly
Final Vendor Documents
Pre-commissioning
