| Name |

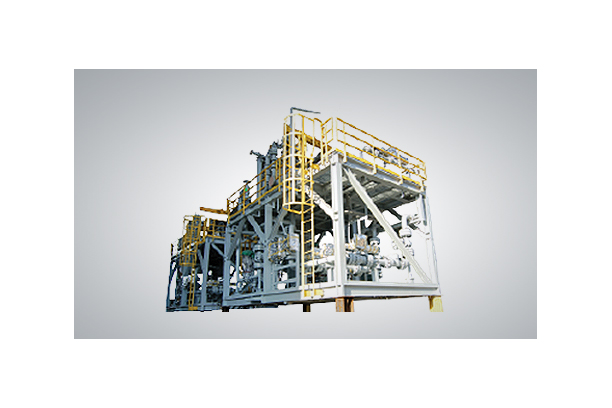

FUEL GAS SKID |
| Series | ON/OFFSHORE (PROCESS PKG) |
Project : Agbami FPSO Project
Site : Nigeria
Client : DSME
EPCI : DSME
End-user : Chevron
Delivery : October. 2007
Size : 4.5m(W)x8.5m(L)x4m(H)
Weight : 100 Ton
Scope of Work : Shop/Field Fabrication Drawings
Procurement of piping and structural material
Fabrication of piping, structural work and SKID assembly
with E&I Interconnection
Final Vendor Documents
