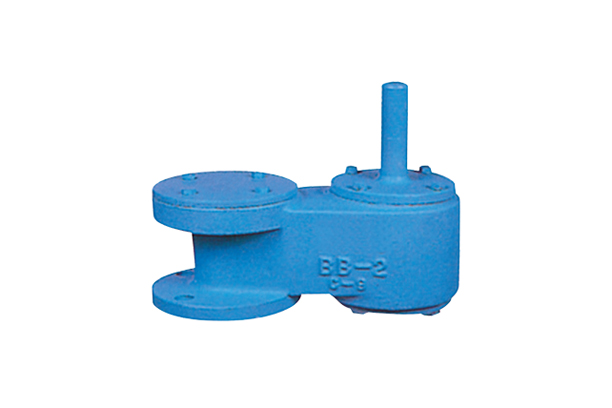

KSVS TYPE VACUUM RELIEF VALVE
Designed manufactured and tested according to the API 2000 code.
Utilize the latest technologies to provide protection against positive or vacuum over pressure and prevent air intake, evaporative losses of product and help to contain odorous and potentially explosive vapours.
INTRODUCTION
The KSVS is a spring loaded model, designed to handle under pressure with a minimum pressure of -700mmW.C and a maximum setting of -7,000mmW.C.
Body materials are available in Aluminium, Carbon Steel, 304SS and 316SS with various trims to suit individual requirements.
Sizes range from 50mm through to 300mm with ANSI 150lb FF flanges as standard. (Different connections available on request).
| VACUUM RELIEF VENT (SPRING TYPE) | |
|---|---|
| SIZE | 2 |
| MATERIAL | AL / C.S / S.S |
| SETTING VACUUM | -700 ~ -10,000mmW.C |
