TYPE FLAME ARRESTER (Flame Arrester)

Model UFD, UFDR
Series Marine-Products
Catalog topsafe__117774_hstuml-UR1JQrH.pdf
Product Description

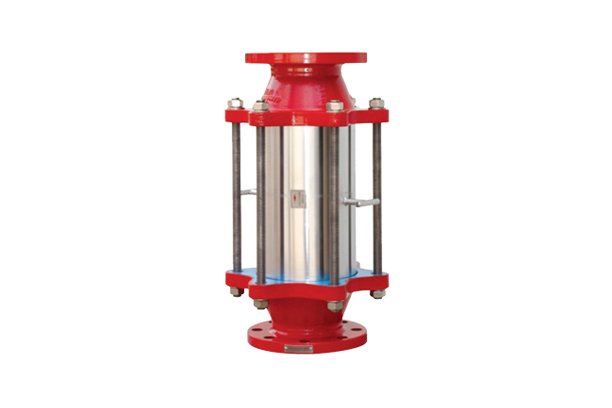

UFD/UFDR TYPE FLAME ARRESTER


Benefits
Meet USCG, IMO MSC/Circ,677 & ISO 16852 requirements
Designed for Detonation & Deflagration proof
Maximum Capacity & Minimum Pressure drop
Capability of Bi-directional flow
Quick & Easy removable element
Very easy cleaning & maintenance
Available vertical & horizontal installation
High quality corrosion & chemical resistance
Capability of absorption of high shock pressure


INTRODUCTION
The model UFD inline flame arrester is designed, manufactured and tested according to API 2000 and British Standard Specification Code BS 7244, EN ISO 16852, USCG and IMO MSC/ Circ,677.
The unit are passive devices with no moving parts.
The UFD detonation flame arresters provide protection against flame propagation in piping systems that are manifolded or have long runs.
The arresters are designed to stop an ignited flammable vapor mixture travelling at subsonic or supersonic vapor velocities.
They are also designed to protect against continuous burning against the 316LSS flame cell for a specific period.
The atandard flame cell is suitable for NEC group D or IEC IIA gases. Cells for other gas groups are available as additional extras.
The flame arresters are available with either carbon steel (epoxy coated), 304SS, or 316SS housing with 316LSS flame cells.


DETONATION FLAME ARRESTER (IN-LINE)
MATERIALC.S / S.S
SIZE2
GAS GROUPIIA, IIB
