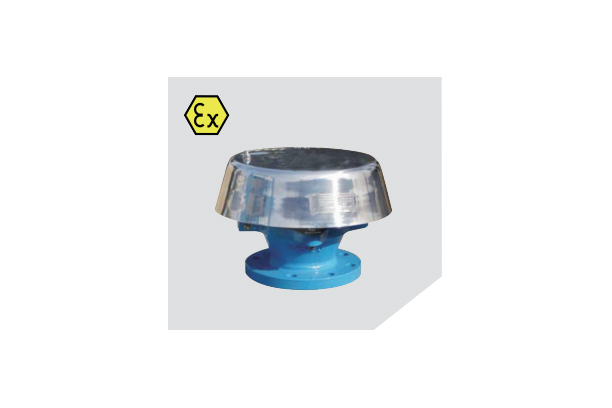

KSED&EB END OF LINE FLAME ARRESTER
Benefits
Meet USCG, IMO MSC/Circ,677 & EN ISO 16852 requirements
Designed for Explosion proof
Maximum Capacity & Minimum Pressure drop
Quick & Easy removable element
Very easy cleaning & maintenance
Vertical installation
High quality corrosion & chemical resistance
INTRODUCTION
The KSED and KSEB flame arrester are designed, manufactured and tested according to ISO 16852.
The units allow free venting in combination with flame protection for vertical vent application.
Housing construction are Aluminum, Cast Iron, Cast Steel, 304SS and 316LSS. Size are from 50mm to 300mm.
Cast iron and cast steel units are epoxy coated both inside and outside.
The Flame Arrester of Model KSED/KSEB is designed, manufactured, tested according to ISO 16852.
Installed in the end of nozzle of the several kinds of the flammable low pressure storage tank (the ignition point below 65 deg C) with easy coupling, it is the deflagration proof which blocks the influx of flame ignited externally into the tank.
