Name

TYPE FLAME TRAPWITH FLAME ARRESTER

Model KSFTFH
Series Land-Based-Products(Flame Arrester)
Catalog topsafe__117836_iulfjs-h33cUCk.pdf
Product Description

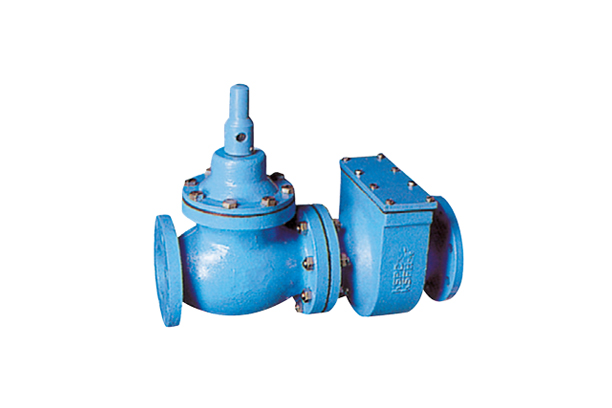

KSFTFH TYPE FLAME TRAPWITH FLAME ARRESTER


Benefits
Flame Trap Ass’y of TOPSAFE makes no difference though it is installed in line of horizontality or perpendicularity.
fuse has an element which is made of metal, and to be melted easy, so it can intercept flame within 15seconds at 260。F.(127。C)
You can see the position of valve disc stem at outside though heat resisting plate glass, so you can confirm whether valve is opened.
Also, disassembly and cleaning of flame element is convenient and we can repair fast and it doesn’t need disassembly to exchange.


INTRODUCTION
KSFTFH type Flame Trap Ass’y of TOPSAFE is composed of Model KSFH Flame Arrester and quick closing valve, automatically,
in according to a rise temperature of heat.
Generally, it’s installed to pipe line in front of gas line from each gas holder and digester.
Also, it’s prevent igniter to install in using gas equipment line.
Flame Trap is designed to protect as a from explosion of propagation of flame.


TYPE FLAME TRAPWITH FLAME ARRESTER
Meet USCG, IMO MSC/Circ,677 & EN 12874 requirements
Designed for Explosion & Deflagration proof
Maximum Capacity & Minimum Pressure drop
Capability of Bi-directional flow & flame arresting
Quick & Easy removable element
Very easy cleaning & maintenance
Available vertical & horizontal installation
No need forced push out pipe-lines for removing element
High quality corrosion & chemical resistance
