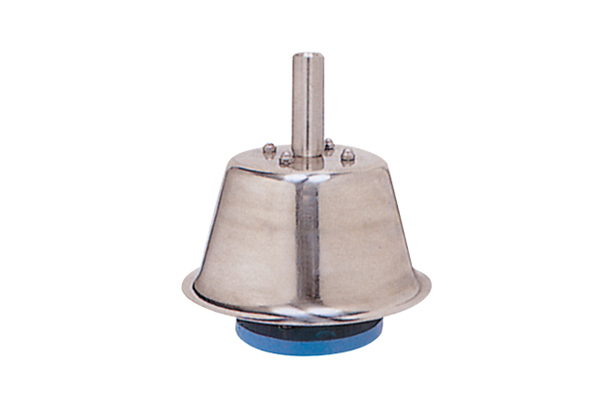

KSPS KSPSPRESSURE RELIEF VALVE
The model KSPS pressure relief valves are an advanced design for vent to atmosphere applications.
Designed manufactured and tested according to the API 2000 code.
Utilize the latest technologies to provide protection against positive or over pressure and prevent air
intake, evaporative losses of product and help to contain odorous and potentially explosive vapours.
INTRODUCTION
The KSPS is a spring loaded model, designed to handle over pressure with a minimum pressure of 700mmW.C and a maximum setting of 7,000mmW.C.
Body materials are available in Aluminium, Carbon Steel, 304SS and 316SS with various trims to suit individual requirements.
Sizes range from 50mm through to 300mm with ANSI 150lb FF flanges as standard. (Different connections available on request).
| PRESSURE RELIEF VALVE (SPRING TYPE) | |
|---|---|
| SIZE | 2” through 12” |
| MATERIAL | AL / C.S / S.S |
| SETTING PRESSURE | 700 ~ 10,000mmW.C |
