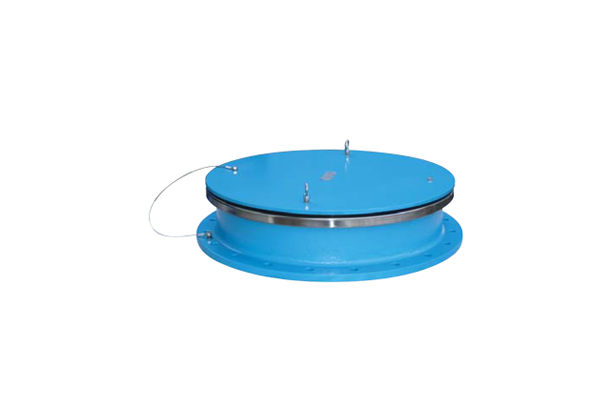

KSEP TYPE EMERGENCY VENT COVER
According to API 2000,NFPA 30,ISO 28300 Code.
The series KSEP is designed to provide emergency pressure relief for storage tanks when exposed to overpressures that are not handled
by standard tank vents.
These vents provide the capacity to meet API standard 2000 for emergency venting due to fire exposure when properly sized.
These covers also provide quick easy access for tank inspection and maintenance.
Vent Operation
The KSEP emergency pressure relief vent provides pressure relief only.
When excessive pressure builds within the storage tank the KSEP series emergency pressure relief vent begin to open at a predetermined set pressure relieving excessive pressure.
When the overpressure has dissipated, the cover reseat onto the base.
Construction
The series KSEP is available in several materials that are corrosion resistant to most petroleum product applications.
See Standard material of construction table for available material.
Predetermined setting range is from a minimum of 50mm W.C to a maximum of 700mmW.C.
Sizes are 400, 450, 500 and 600mm with flange drilling according to ANSI 150lb or API650.
| EMERGENCY PRESSURE RELIEF MANHOLE(WEIGHT TYPE) | |
|---|---|
| SIZE | 16 |
| MATERIAL | AL / C.S / S.S |
| SETTING PRESSURE | 150 ~ 700mmW.C |
| SETTING VACUUM | |
