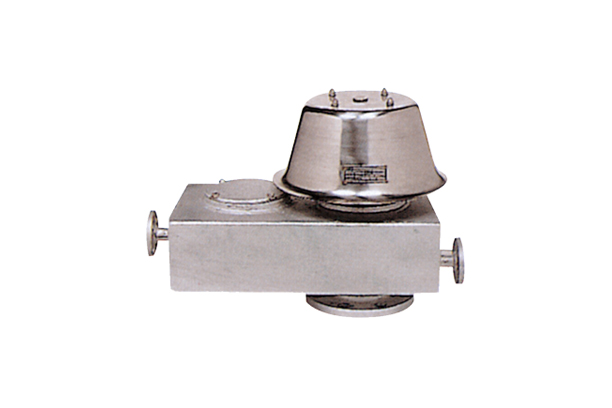

KSBBJ/BSJ TYPE PRESSURE VACUUM VALVE
The model KSBBJ and KSBSJ pressure vacuum valves are an advanced design for vent to atmosphere applications.
Designed manufactured and tested according to the API 2000,NFPA 30,ISO 28300 code, these valves utilize the latest technologies to provide protection against positive or vacuum over pressure and prevent air intake, evaporative losses of product and help to contain odorous and potentially explosive vapours.
INTRODUCTION
Some special fluid or gases are sublimated at room temperature. The safety of tank is kept by the supply of external heat and the normal operation of valve disc (pallet) for venting.
Model KSBBJ/BSJ type are designed and manufatured to supply the stem through the steam traced of the main valve.
These pressure vacuum valves maintain a tight seal until system pressure or vacuum exceeds the set pressure.
The valves allow an intake of air under constant pressure during emptying, or discharge excessive over pressure during filling of the tanks.
The KSBBJ is a weight pallet model designed to handle pressure and vacuum with a minimum pressure of +/-25mmW.C and a maximum setting of +/- 700mmW.C
The KSBSJ is a spring loaded model designed to handle pressure and vacuum with a minimum pressure of +/-700mmW.C and a maximum setting of +/- 7,000mmW.C.
Body materials are available in 304SS and 316SS with various trims to suit individual requirements.
Sizes range from 50mm through to 300mm with ANSI 150lb FF flanges as standard. (Different connections available on request).
| Dimension Table | |
|---|---|
| Size | 2” through 12” |
