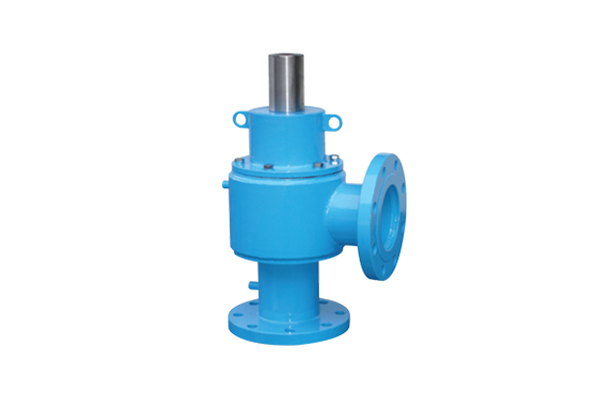

KSBD PRESSURE RELIEF VALVE
The model KSBD pressure vacuum valves are an advanced design for pipe away applications.
Designed manufactured and tested according to the API 2000 code.
Utilize the latest technologies to provide protection against positive or vacuum over pressure and prevent air intake, evaporative losses of product and help to contain odorous and potentially explosive vapours.
INTRODUCTION
The KSBD is a weight pallet model, designed to handle over pressure with a minimum pressure of 20mmW.C and a maximum setting of 700mmW.C
Body materials are available in Aluminium, Carbon Steel, 304SS and 316SS with various trims to suit individual requirements.
Sizes range from 50mm through to 300mm with ANSI 150lb FF flanges as standard. (Different connections available on request).
| PIPE AWAY (PRESSURE RELIEF) (WEIGHT TYPE) | |
|---|---|
| SIZE | 2” through 12” |
| MATERIAL | AL / C.S / S.S |
| SETTING PRESSURE | 25 ~ 700mmW.C |
| SETTING VACUUM | |
