Name

TYPE FLAME ARRESTER

Model KSFL
Series Land-Based-Products(Flame Arrester)
Catalog topsafe__117837_saswpb-IHry2U5.pdf
Product Description

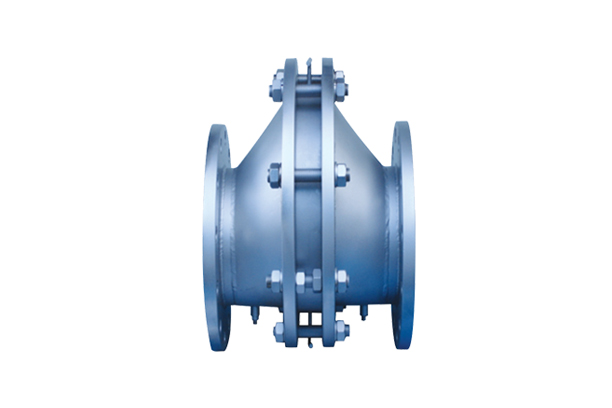

KSFL TYPE FLAME ARRESTER

Benefits
Meet USCG, IMO MSC/Circ,677 & EN ISO 16852 requirements
Designed for Explosion & Deflagration proof
Maximum Capacity & Minimum Pressure drop
Capability of Bi-directional flow & flame arresting
Quick & Easy removable element
Very easy cleaning & maintenance
Available vertical & horizontal installation
High quality corrosion & chemical resistance
Useful for vapor mixed line


INTRODUCTION
The model KSFL inline flame arrester is designed, manufactured and tested according to API2000 and British Standard Specification Code BS 7244 and EN ISO 16852.
The unit are passive devices with no moving parts.
The KSFL deflagration flame arresters provide protection against flame propagation in piping systems that are manifolded or have long runs.
The arresters are designed to stop an ignited flammable vapor mixture travelling at subsonic vapor velocities.
They are also designed to protect against continuous burning against the 316LSS flame cell for a specific period.
The atandard flame cell is suitable for NEC group D or IEC IIA gases. Cells for other gas groups are available as additional extras.
The flame arresters are available with either carbon steel (epoxy coated), 304SS, or 316SS housing with 316LSS flame cells.
Sizes range from 25mm to 600mm.
Standard flanges are ANSI 150lb and other connections are available upon request.


DEFLAGRATION & EXPLOSION PROOF TYPE
MATERIALAL / C.S / S.S
SIZE2
GAS GROUPIIA, IIB
