MODEL : DLG - T Series
JIS F 7211 JIS F 7211

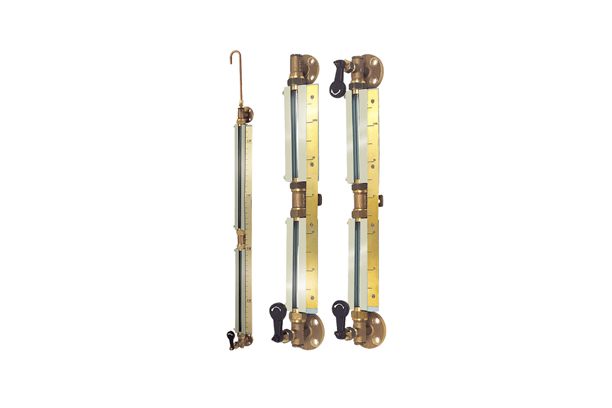

Tubular Type
Tubular type level gauges are suitable for nonflammable liquids in ship tanks
Model Classification and Specification
JIS Code | Type | Valve type | Connection size | Material | Center to center | Design pressure | Working temp’ | ||
Upper | Lower | Protector | Valve | ||||||
JIS F7211 | A | Vent | shut -off | 5K 10A | SS41 | BC6 | 325 ~ 3765 | 0~3㎏/㎠ | 0~100°C |
B | tank return | shut -off | |||||||
C | shut -off | shut -off |
Model Classification and Specification
JIS Code | Type | Valve type | Connection size | Material | Center to center | Design pressure | Working temp’ | ||
Upper | Lower | Protector | Valve | ||||||
JIS F7212 | A | Vent | self- closing | 10K 10A (16K 10A) | SS41 | BC6 | 325 ~ 3765 | 0~3㎏/㎠ | 0~100°C |
B | tank return | self- closing | |||||||
C | shut -off | self- closing |
JIS F 7211
JIS F 7212
