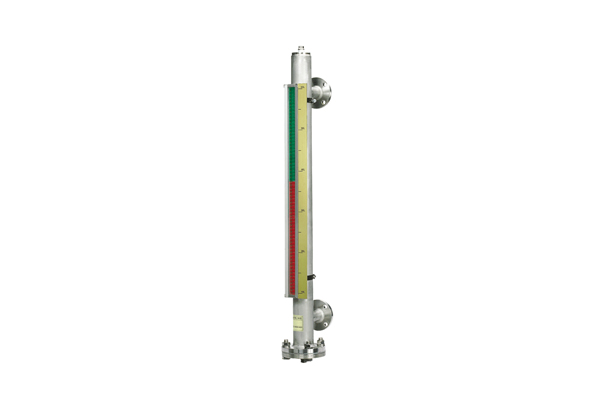

Magnetic Float Type Level Gauge
Model DMLG-S-□-□, DMLG-T-□-□
Series Magnetic Float Type Level Gauge
Product Description

Operating principle
Layer consist of individual small magnetic flag, which half color red and the other half white and can be turned each by each, and it is mounted to the front chamber.
As liquid level rises, a magnet-equipped float withch the unit inverts the magnetic flags in the external indicator to “color-side-out.” The flags remain magnetically interlocked in a column until again inverted to “contrasting-side-out” by the float as liquid level falls. Liquid level is indicated by the junction of the “color” and “contrasting” portions of the column.



Description of model


Standard Model and specifications

SymbolMounting methodConnection sizeWorking conditionSpecific graveAccuracyMaterial
PressTempChamberFloatFlagFlag Chamber
DMLG-S-□-□Side-SideJIS 5K 25A5kg /㎠200℃Over 0.8±10m/mSUS304SUS304PolycarbonateAluminum
DMLG-T-□-□TopJIS 5K 100A
0r 125A		5kg /㎠200℃Over 0.8±10m/mSUS304SUS304Polycarbonate

Aluminum


Standard Model and specifications
DescriptionModuleOutputContact ratingContact formPower sourceAccuracyMaterialNo.of pointMesasuring rangeMax.working tempEnclosure
HousingTransmitter
Level swichReed swichDry contact125VAC, 0.5AS.P.D.T (No,Nc,Com)N/A±5m/mACN/AMax.6N/A120℃Weather
proof
Level transmitterReed swich and resistors4-20mA DC Two-wireN/AN/ADC 24V±1.5% of F.SACSUS304N/A400 ~
5000m/m		120℃Weather
proof
These switch & transmitter modules can be intrinsically safe by using the I.S barrier
Please consult with our factory when other condition are required. s
