Name	Marine Float Level Gauge
Model	DFLG-A(JISF7217A), DFLG-B(JISF7217B), DFLG-C(JISF7217C)
Series	Marine Float Level Gauge

Product Description

General
This float level gauge is used for all kind of oil tanks. it’s good points simple installation and easy maintenance

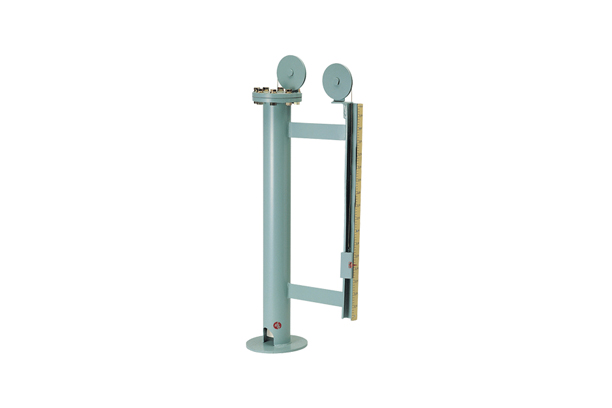

DFLG - A(JIS F 7217A) DFLG - B(JIS F 7217B) DFLG - C(JIS F 7217C)

Contact Composition

Model	Mounting Type	Nominaldia	Application
DFLG-FCG-100	Direct acting	100	Removable
DFLG-FCG-150	Direct acting	150	Double bottom (Lubricating oil,Water)tanks
DFLG-FCG-200	Direct acting	200	Double bottom (Lubricating oil,Water)tanks

Standard Model and specifications

Model	Cha-mber	Float	Sheave	Spindle	Flange	Wire rope	Sight glass
DFLG-A	SGP	SUS304	SS400	N/A	SS400	SUS304	N/A
DFLG-B-150	SGP	SUS304	SS400	N/A	SS400	SUS304	N/A
DFLG-C-200	SGP	SUS304	SS400	SUS304	SS400	N/A	Hard

Operating Condition

Model	Working condition		Conn. size	Chamber size	Measuring renge at Sp.Gr 0.92
Model	Press	Temp.	Conn. size	Chamber size	Measuring renge at Sp.Gr 0.92
DFLG-A-100	3㎏/㎠	80°C	5K 100A	100A	3000m/m
DFLG-B-150	3㎏/㎠	80°C	5K 100A	150A	6000m/m
DFLG-C-200	3㎏/㎠	80°C	5K 100A	200A	10000m/m

The scale plate for above gauges are optional item
The JIS F 7217 angle valve for DFLG-B is optional item.

DFLG - A(JIS F 7217A)

DFLG - B(JIS F 7217B)

DFLG - C(JIS F 7217C)
