Name

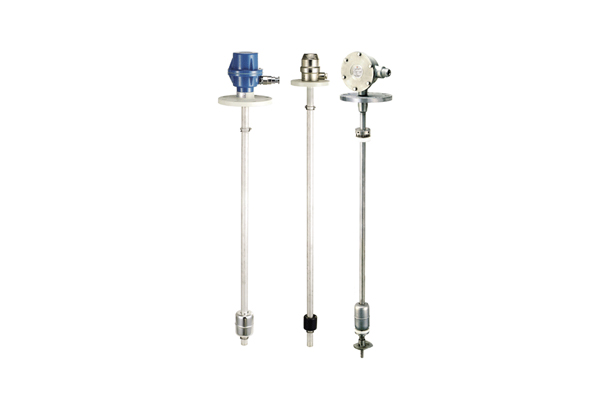

Magnetic Float Type Level Transmitter

Model DT-100R-TE, DT-100R-IB, DT-100R-T, DT-100R-TC
Series Magnetic Float Type Level Transmitter
Product Description

General
The model DT-100R Type is for liquid level indicationand alarm transmitter.
The individual detecting switches in the guide pipe have been exchanged against a chain of resistors
with reed switches.


Operating principle
This system, as a digital alarm & controller of liquid level, has a micom chip inside and indicates the level by setting the automatic Feed/Drain and High/Low level alarm systems for each kind of
tank into digital.
It is a level controller of current(4~20mA) input system, which has the function to shut off the cantact output in case of cable disconnection, short circuit, and sensor problem.
With its construction to allow easy setting and> functioning, it works properly without being affected by induction or power noise.


Application
Applied for all kinds of liquid For a hazard area, to be used as an intrinsically safe system connecting with I.S barrier


Technical date
Accuracy : ±1% of F.S depending on measuring range. Measuring range : Max. 30m
Output signal : 4-20mA
Typical resistance : 1KΩ
Power source : 12~32V DC
2 Wire system balancing type
Enclosure : Weather proof / IP56, IP68
Specific gravity : Above min. 0.6
Max. pressure : 10Kg/㎠
Max. working temperatures : -20 ~ +120℃
Ambient temperature : -25 ~ 80℃
I.S grade : EEx ia ll C
Connection size: JIS 5K 80A, 100A
Material - Terminal Box : SUS304, ALDC
- Flange : SS400, SUS304
- Guide pipe : SUS304
- Float : SUS316, Synthetic Rubber


Description of model





DT - 100R - TE



DT - 100R - IB


DT - 100R - T



DT-100R-TC
