Name

I.S Barrier

Model Z779, KFD2-CR-EX1.30 200
Series I.S Barrier / Level Indicator
Product Description

Specification

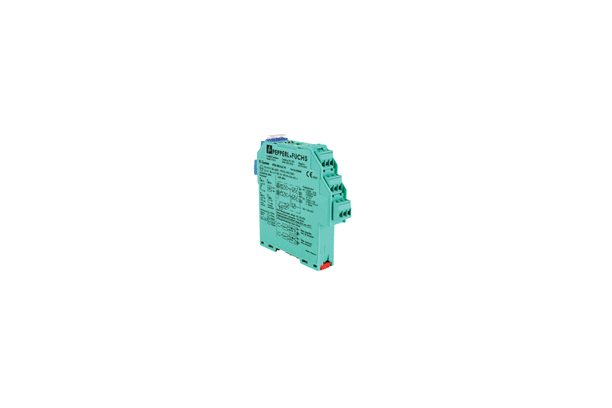

I.S BARRIER
(MODEL:KFD2-CR-EX1.30 200)
- 1 Channel
- Input EEx ia ⅡC
- DC 24V supply voltage
- Output:max. 1kohm allowable load


I.S BARRIER (MODEL:Z779)
Technical Data Ch.1 Ch.2
- Fuse rating mA 50 50
- Barrier Voltages
Vmax 28 28
- End-to-End Resistance(ohms)
Nom 301 301
Max 327 327
- Safety Parameters
Uz volts 28 28
I max milliamps 93 93
V max watts 0.65 0.65

Technical Data Ch.1 Ch.2
- IIC Cable Parameters, max combination
C㎌ 0.13 0.13
L mH 4.2 4.2
L/R μH/ohm 55 55
- Provisional
[EExia]IIC Certificate No. Ex93C2412
