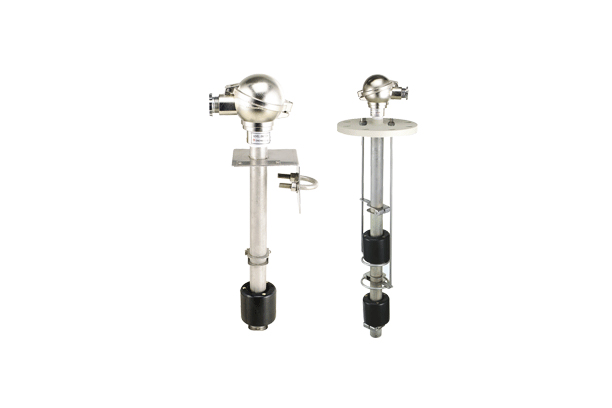

Reed Switch Type Float Level Switch
Model LS-TM-1F, LS-TM-1FE, LS-TM-2F, LS-TM-2FT-C, LS-TM-3FT, LS-TM-4F, LS-TM-1FS, LS-TM-1FT-S
Series Reed Switch Type Float Level Switch
Product Description

Operating principle
Top mounting type level switch consists of a guide pipe, floats, and a terminal box.
Magnets are fixed in floats and reed switches which are located at each alarm point fixed in guide pipe. As a float rises or lowers with liquid level, the magnetic field generated from within the float actuates a thematically sealed, magnetic reed switch mounted within the stem. When the liquid reaches alarm level, the reed switch opens or closes its contact.


Application
Displacement type level switch are widely used for Coaltar fuel tanks, Heavy fuel oil tanks, Setting tanks, Sludge tanks, Fresh water tanks, Lub.oil tanks, D.O tanks and others.



Technical date
Fresh water tank, Heavy Fuel oil tank, D.O tank, Sludge tank, Sewage tank, etc.





Description of model


Contact Composition





LS - TM - 1F


LS - TM - 1FE

LS - TM - 1FS



LS - TM - 1FT - S



LS - TM - 2F



LS - TM - 2FT - C



LS - TM - 3FT




LS - TM - 4F
