Liquid Level Control System

Model SDC-6000, LS-TM
Series Liquid Level Control System
Product Description

General
The Liquid level control system (SDC-6000) is designed with the highest confidence and high accuracy by 2-wire system.


Operating principle
Values of resistances inserted in the guide pipe of float switch(LS-TM) are sensing by a float and relayed to the controller according to the liquid level. The controller converts the resistance signal into 4~20mA and the signal information is process chip.
Signals of Pump Start / Stop, automatic supply / drain, and high / low alarm are transmitted to each separate relay and controlled. Also, each signal is displayed by LED lamp built in the controller.


Technical date

Controller

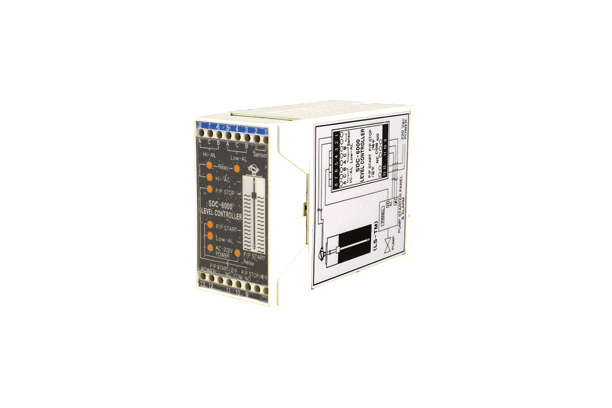

Type : SDC-6000
Power supply : 100~250VAC, 60-Hz or 24V
Max. temp : 65℃
Anti-Explosion : Exia ll C T6
Power consumption : 6.5W
Connect Capacity : AC250V/5A


level Sensor
Type : LS-TM
Certificate : KR, DNV, BV, LR, ABS
IP grade : IP67
Connect Capacity : 50A
Connection : JIS 5K65/5K80/5K100, Others  Float : SUS304/Synthetic rubber

* Ballast tank remote reading
* Draft remote reading
* Heeling and trim remote reading
* Fuel oil tank remote reading
* Waste waters, weels, locks, rivers, sea water, etc.


Application
Fresh Water, Sea Water, HFO, FO, Chemical Tank etc.
