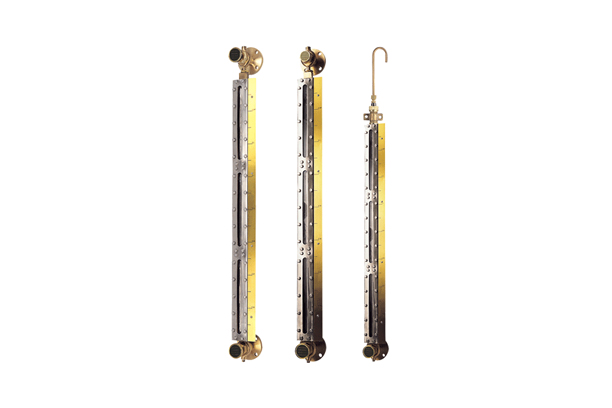

Flat & Reflex Type Glass Level Gauge

Model DLG-F, DLG-R
Series Flat & Reflex Type Glass Level Gauge
Product Description

Flat & Reflex Type Glass Level Gauge




Flat type

Flat type is used for marine oil tanks, excluding hose of flash point of 60℃ below. An excellent observation of colorless liquid level is provided through reflection of several parallel grooved glass.

Reflex Type

Reflex type level gauge consists of a rugged body, glass and cover securely fixed by u-bolts to endure high pressure. This type features several parallel grooves cut into the glass surface that is in contact with liquid.
And transparent liquid can be clearly observed


Model Classification and Specification
ModelTypeValve typeConnection
size
Design
pressure
Max
temp′
MaterialCenter
of Center
UpperLowerValveChannelGlass
DLG-FASelf-closingself- closingJIS
5K20A,25A
3㎏/㎠150°C

BC6

SUS304Borosilicate275~5100
(m/m)
BTank returnself- closingJIS
5K20A,25A
3㎏/㎠150°CBC6SUS304Borosilicate
CTop ventself- closingJIS
5K20A,25A
3㎏/㎠150°CBC6SUS304Borosilicate


Model Classification and Specification

ModelTypeValve typeConnection
size
Design
pressure
Max
temp′
MaterialCenter
of Center
UpperLowerValveChannelGlass
DLG-RABallBallANSI 1”150#20㎏/㎠200°C

SUS304

SUS304SUS304320~2870
(m/m)
BSelfSelfSUS304SUS304SUS304
ABallBallANSI 1”150#20㎏/㎠200°CSUS304SUS304SUS304
BSelfSelfSUS304SUS304SUS304
Please contact our factory if other specification are required
